Keep your compatible Voopoo vape kit ready to use with genuine Voopoo PnP X replacement coils, supplied in a pack of five. Designed for Voopoo's PnP X platform, these press-fit mesh coils are suitable for compatible devices and cartridges, including the Drag X2, Drag S2 and Argus Pro 2.
Choose from 0.15Ω, 0.2Ω, 0.3Ω and 0.6Ω resistance options to suit your preferred vaping style, from direct-to-lung (DTL) to restricted direct-to-lung (RDL) and mouth-to-lung (MTL). Each resistance has its own recommended wattage range, so check your device and cartridge compatibility before selecting a replacement.
Voopoo PnP X Coil Features
- Pack of five: Five genuine Voopoo PnP X replacement coils in your selected resistance.
- Four resistance options: Choose 0.15Ω, 0.2Ω, 0.3Ω or 0.6Ω.
- Mesh coil construction: Designed to distribute heat across the coil's heating surface.
- Thermo-stable cotton: Wicking material developed for the PnP X platform.
- Press-fit installation: Replace coils without threading them into the cartridge.
- MTL, RDL and DTL options: Select the appropriate resistance and compatible cartridge for your preferred draw.
- Leak-resistant design: Part of Voopoo's PnP X system, designed to help reduce condensation and e-liquid leakage.
Which Voopoo PnP X Coil Should You Choose?
The four PnP X coil resistances available at Tablites have different recommended power ranges and vaping styles. The correct choice depends on your compatible device, cartridge, airflow setting and e-liquid.
| Coil Resistance | Recommended Wattage | Vaping Style | E-Liquid Guidance |
|---|---|---|---|
| 0.15Ω | 60–80W | DTL | High-VG e-liquid, typically around 70% VG |
| 0.2Ω | 40–60W | DTL | High-VG e-liquid, typically around 70% VG |
| 0.3Ω | 32–40W | RDL / DTL | Approximately 60–70% VG |
| 0.6Ω | 18–23W | MTL / RDL | 50/50 VG/PG or another suitable balanced blend |
These wattage ranges follow Voopoo's specifications. Always use a resistance supported by your device and cartridge, and follow the manufacturer's instructions.

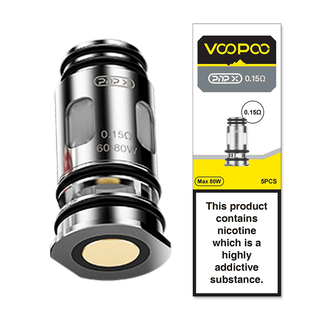

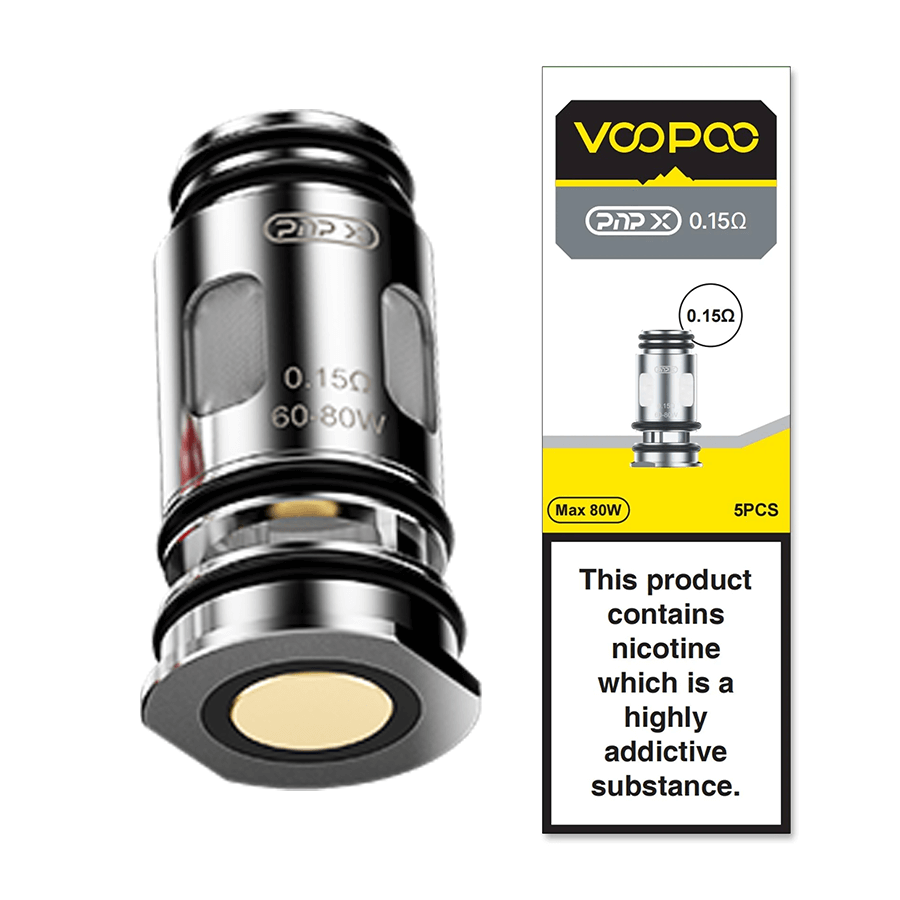

Voopoo PnP X 0.15Ω Coils – 60–80W
The 0.15Ω PnP X coil is designed for direct-to-lung vaping at higher power settings. It is suited to a more open airflow and compatible high-VG e-liquids. Use it with a suitable PnP X DTL cartridge or tank and a device capable of operating within the recommended 60–80W range.

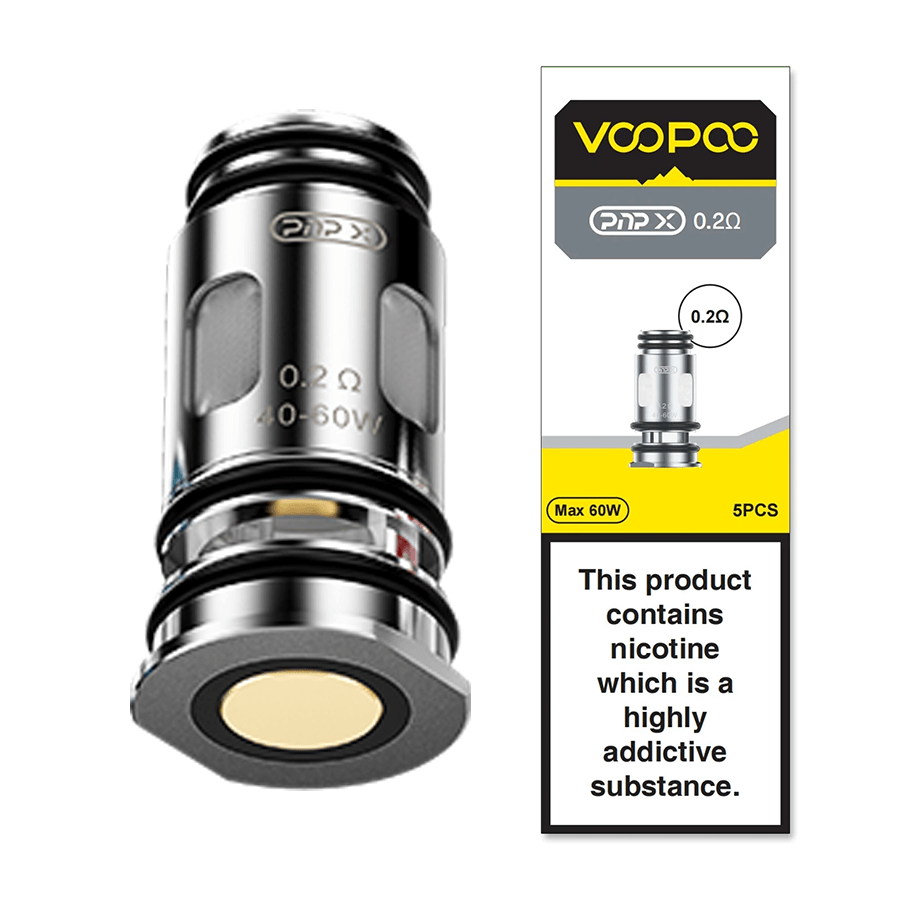

Voopoo PnP X 0.2Ω Coils – 40–60W
The 0.2Ω option is another direct-to-lung coil, operating at a lower recommended wattage range than the 0.15Ω version. It is designed for compatible DTL hardware and higher-VG e-liquids.
Voopoo PnP X 0.3Ω Coils – 32–40W
The 0.3Ω coil supports restricted direct-to-lung and direct-to-lung vaping, depending on the cartridge and airflow configuration. It offers a middle-ground option between the higher-powered 0.15Ω and 0.2Ω coils and the lower-powered 0.6Ω version.

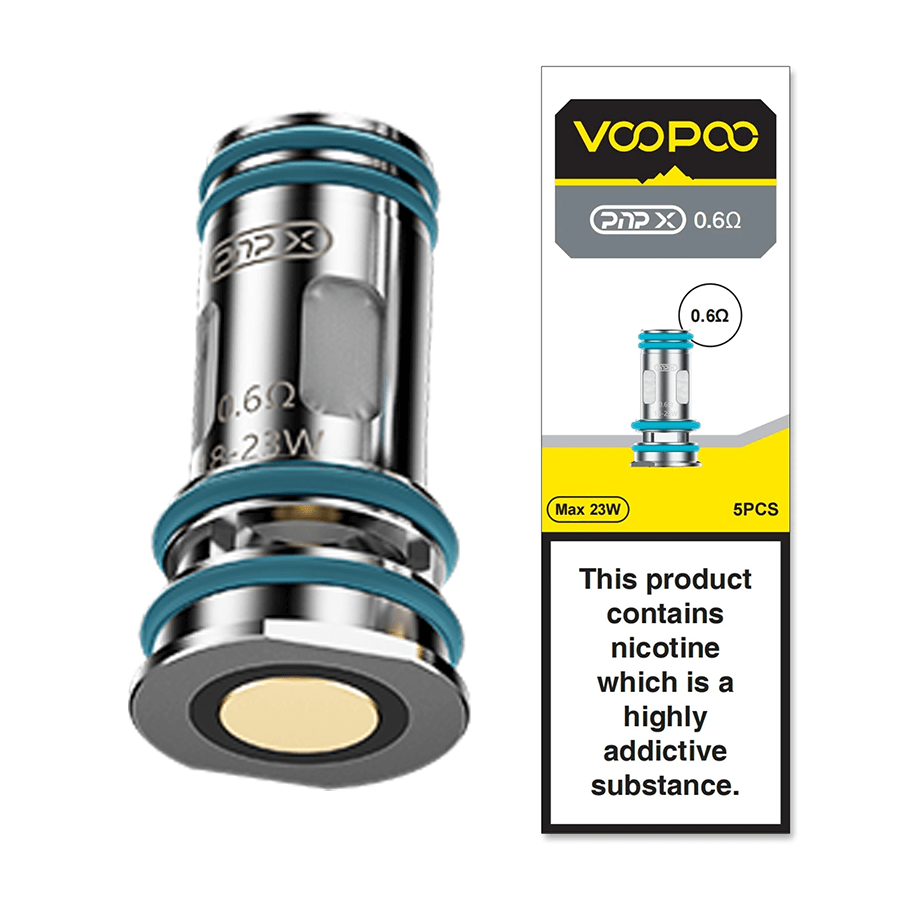

Voopoo PnP X 0.6Ω Coils – 18–23W
The 0.6Ω PnP X coil is designed for lower-powered mouth-to-lung or restricted direct-to-lung vaping. It is particularly suited to compatible PnP X MTL cartridges and balanced e-liquids, such as 50/50 VG/PG formulations.
Which Devices Are Compatible With Voopoo PnP X Coils?
Voopoo PnP X coils are designed for the PnP X platform, not the original PnP coil system.
Compatible applications include:
- Voopoo Drag X2: Uses PnP X cartridges and compatible PnP X coil resistances.
- Voopoo Drag S2: Supports PnP X cartridges and coils.
- Voopoo Argus Pro 2: Supports the PnP X coil platform with its compatible cartridge.
- Voopoo PnP X pod tanks and cartridges: Available in different configurations for MTL and DTL vaping.
- Other supported Voopoo hardware: Selected newer devices and tanks use PnP X coils, including compatible UFORCE-X systems. Check the exact product specifications before purchasing.
Important: Device compatibility does not mean every coil resistance is suitable for every cartridge or wattage setting. For example, a device must be capable of supplying the recommended power for the selected coil.
Browse the Voopoo Drag X2 vape kit or explore our Voopoo vape kits and accessories.
Voopoo PnP X DTL and MTL Cartridge Compatibility
Voopoo offers different PnP X cartridge configurations for direct-to-lung and mouth-to-lung vaping. Choosing the correct cartridge helps match the coil to your preferred draw.
PnP X DTL Cartridges
The PnP X DTL cartridge is designed for a more open draw and is intended for the following resistance options:
- 0.15Ω – 60–80W
- 0.2Ω – 40–60W
- 0.3Ω – 32–40W
PnP X MTL Cartridges
The PnP X MTL cartridge offers a more restricted airflow configuration and is intended for:
- 0.3Ω – 32–40W, where supported by the cartridge and device
- 0.6Ω – 18–23W
These are the manufacturer's recommended resistance combinations for the corresponding cartridge styles. Other PnP X tanks and devices may have different supported configurations.
Need a replacement cartridge? See our Voopoo PnP X MTL and DTL cartridges.
Are PnP X Coils the Same as Original Voopoo PnP Coils?
No. Voopoo PnP X coils are different from original PnP coils and are not directly interchangeable with the original PnP coil platform.
Before ordering, check whether your device or tank specifies PnP X, original PnP, PnP-TW or another coil system. Similar resistance values do not mean the coils have the same physical fitting.
If your device uses the older coil system, browse our Voopoo replacement coils collection to find the appropriate option.
Voopoo PnP X Mesh Coil Technology
Voopoo's PnP X platform uses updated mesh-heating and cotton-wicking designs. The mesh heating element is intended to distribute heat across the coil, while the cotton helps deliver e-liquid to the heating surface.
The system also incorporates a multi-layer, leak-resistant construction designed to help manage condensation and reduce e-liquid leakage during normal use.
Coil lifespan varies with e-liquid composition, wattage, frequency of use and maintenance. Replace the coil when flavour or vapour production deteriorates, or if a persistent burnt taste develops.
Which E-Liquid Is Best for Voopoo PnP X Coils?
The most suitable e-liquid depends on the coil resistance and the device or cartridge being used.
- 0.15Ω and 0.2Ω: Designed for higher-power DTL vaping. Higher-VG e-liquids, typically around 70% VG, are generally appropriate. Lower nicotine strengths are normally preferred for these higher-powered setups.
- 0.3Ω: Suitable for RDL or DTL vaping with compatible e-liquids containing approximately 60–70% VG.
- 0.6Ω: Suited to MTL or restricted DTL vaping with balanced formulations, including suitable 50/50 VG/PG e-liquids.
Suitable nicotine salt e-liquids may be used with the 0.6Ω coil in compatible lower-powered configurations. Do not assume that high-strength nicotine salts are appropriate for the 0.15Ω, 0.2Ω or 0.3Ω coils.
Explore our 50/50 e-liquids for compatible lower-powered setups. Always follow the recommendations for your coil, cartridge and device.
How to Replace a Voopoo PnP X Coil
- Switch off your vape device and remove the PnP X cartridge or tank according to its instructions.
- If the cartridge contains e-liquid, take care to prevent spills when removing the existing coil.
- Pull out the old press-fit PnP X coil.
- Check that the replacement coil is the correct PnP X resistance for your device and cartridge.
- Install the new coil securely, following the manufacturer's instructions.
- Refill the cartridge with a suitable e-liquid and reassemble it.
- Allow the coil's cotton to become fully saturated before vaping. Follow Voopoo's recommended priming instructions.
- Start within the manufacturer's recommended power range and adjust as appropriate for your device.
Never operate a coil above its stated recommended wattage range.
Voopoo PnP X Coil Specifications
- Brand: Voopoo
- Product: PnP X Replacement Coils
- Pack quantity: 5 coils
- Resistance options: 0.15Ω, 0.2Ω, 0.3Ω and 0.6Ω
- Coil construction: Mesh heating element with cotton wicking
- Installation: Press-fit
- Vaping styles: MTL, RDL and DTL, depending on resistance and compatible hardware
- Compatibility: Voopoo PnP X platform devices, tanks and cartridges
- Not compatible with: Original Voopoo PnP, PnP-TW or TPP coil fittings unless the specific hardware explicitly supports PnP X
What's Included?
- 5 x Voopoo PnP X replacement coils in your selected resistance
Please note: A vape kit, tank, cartridge and e-liquid are not included.
Voopoo PnP X Coils FAQs
Do Voopoo PnP X coils fit the Drag X2?
Yes. The Voopoo Drag X2 supports PnP X coils when used with a compatible PnP X cartridge. Select a resistance appropriate for your cartridge and the device's available wattage.
Are PnP X coils compatible with the Drag S2?
Yes. The Drag S2 is part of Voopoo's PnP X platform. Check the recommended resistance and wattage for the cartridge fitted to your device.
Do PnP X coils work with the Argus Pro 2?
Yes. Voopoo lists the Argus Pro 2 as a PnP X-compatible device. Use the appropriate PnP X cartridge and coil resistance for your setup.
Can I use original Voopoo PnP coils instead of PnP X coils?
No. Original PnP coils and PnP X coils use different fittings and should not be treated as interchangeable. Check the exact coil platform specified by your device or tank.
Which Voopoo PnP X coil is best for mouth-to-lung vaping?
Of the four resistance options sold on this page, the 0.6Ω coil is the most suitable for mouth-to-lung vaping. It operates at 18–23W and is designed for compatible MTL cartridges.
Which PnP X coil is best for direct-to-lung vaping?
The 0.15Ω and 0.2Ω coils are designed for direct-to-lung vaping, with recommended ranges of 60–80W and 40–60W respectively. The 0.3Ω coil can also suit restricted direct-to-lung or direct-to-lung vaping.
Can I use nicotine salt e-liquid with PnP X coils?
Suitable nicotine salt e-liquids can be used with the 0.6Ω coil in compatible lower-powered MTL setups. The lower-resistance, higher-powered coils are generally better suited to lower-strength e-liquids. Always check the manufacturer's recommendations.
How long do Voopoo PnP X coils last?
Coil lifespan varies according to e-liquid, wattage, usage and maintenance. Voopoo publishes laboratory-based longevity claims for its PnP X technology, but these are not guaranteed results for every user. Replace the coil when its performance deteriorates or a persistent burnt taste develops.
Are Voopoo PnP X coils leak-proof?
The PnP X system includes leak-resistant design features, but no refillable vaping system is guaranteed to be completely leak-proof. Correct coil installation, filling and maintenance can help reduce leakage.
How many Voopoo PnP X coils are in a pack?
Each pack contains five Voopoo PnP X replacement coils in the resistance selected when ordering.
